| mPEG-SAS (PEG NHS: Succinamide Succinimidyl ester) |
|
| PSB-2110 | mPEG-SAS, MW 550 |
| PSB-2111 | mPEG-SAS, MW 1,000 |
| PSB-2112 | mPEG-SAS, MW 2,000 |
| PSB-2113 | mPEG-SAS, MW 5,000 |
| PSB-2114 | mPEG-SAS, MW 10,000 |
| PSB-2115 | mPEG-SAS, MW 20,000 |
| PSB-2116 | mPEG-SAS, MW 30,000 |
| PSB-2117 | mPEG-SAS, MW 40,000 |
Description:
mPEG-SAS is one type of mPEG-NHS ester reagents. There is a C2 aliphatic amide linkage between PEG and the NHS ester. GAS has a longer hydrolysis half-life and thus is more stable than many other types of NHS esters in aqueous buffer.

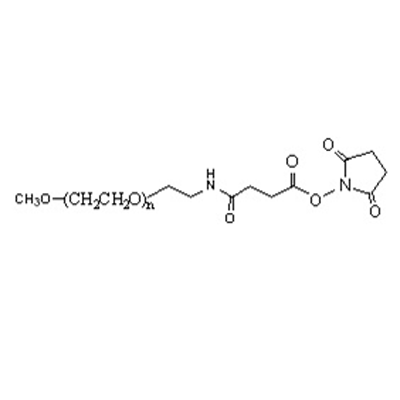

mPEG-SAS is also called O-[(N-Succinimidyl)succinyl-aminoethyl]-O'- methylpolyethylene glycol, CAS Number 92451-00-8.
References:
1. Molecular and Biocompatibility Characterization of Red Blood Cell Membrane Targeted and Cell-Penetrating-Peptide-Modified Polymeric Nanoparticles, Mol. Pharmaceutics, 2017, 14 (7), pp 2224–223, Text.
2. Targeting thyroid cancer with acid-triggered release of doxorubicin from silicon dioxide nanoparticles, Int J Nanomedicine. 2017; 12: 5993–6003, Text.
3. RNA Fibers as Optimized Nanoscaffolds for siRNA Coordination and Reduced Immunological Recognition. Advanced Functional Materials. 2018: 1805959. Text.
Q: What are the differences among your PEG NHS ester & PEG Acid products?
A: We offer a variety of PEG Acid and PEG NHS ester. These NHS esters react with primary and secondary amine to form a stable amide linkage. This reaction may be carried out in an organic solution with an organic base or may be carried out in an aqueous solution at or around neutral pH or slightly acidic or basic. To PEGylate proteins or nanoparticles, it often requires a large excess of PEG NHS esters due to the competitive hydrolysis reaction in an aqueous solution. Stability of NHS esters is compared by their hydrolysis half-life (T1/2). To mitigate the competitive hydrolysis reaction, organic solvents such as amine-free, anhydrous DMF and DMSO may be used in combination with an aqueous buffer solution.
PEG NHS esters | Structural characteristics | Amine reactivity | Stability |
|---|
| Type A: SCM | Methylene (CH2) linkage between PEG and NHS ester | Highly reactive | Hydrolysis half-life: less than five minutes. It often requires the use of a large excess of PEG reagents. |
| Type B: SG | C4 aliphatic ester linkage between PEG and NHS ester | Very reactive | Hydrolysis half-life: around 20 minutes. |
| Type C: SS | C3 aliphatic ester linkage between PEG and NHS ester | Very reactive | Hydrolysis half-life: around 10 minutes. |
| Type D: GAS | C4 aliphatic amide linkage between PEG and NHS ester | Very reactive | Hydrolysis half-life: around 20 minutes. |
| Type E: SAS | C3 aliphatic amide linkage between PEG and NHS ester | Very reactive | Hydrolysis half-life: around 10 minutes. |
SCM: Succinimidyl Carboxyl Methyl ester; SG: Succinimidyl Glutarate ester; SS: Succinimidyl Succinate ester; GAS: GlutarAmide Succinimidyl ester; SAS: SuccinAmide Succinimidyl ester. Note: hydrolysis half-life depends on pH, temperature and other factors of the testing conditions.
| PEG acids | Structural characteristics |
|---|
| Type A: AA | Methylene (CH2) linkage between PEG and acid (COOH) |
| Type B: GA | C4 aliphatic ester linkage between PEG and acid (COOH) |
| Type C: SA | C3 aliphatic ester linkage between PEG and acid (COOH) |
| Type D: GAA | C4 aliphatic amide linkage between PEG and acid (COOH) |
| Type E: SAA | C3 aliphatic amide linkage between PEG and acid (COOH) |
AA: Acetic Acid, also called CM - Carboxyl Methyl; GA: Glutaric Acid; SA: Succinic Acid; GAA: GlutarAmide Acid; SAS: SuccinAmide Acid.
