Bathocuproine (BCP)
Bathocuproine, one of the most popular HBL materials used in organic electronics
Aids the improvement of PCE of polymer organic solar cells when used as a buffer layer
Bathocuproine (BCP) is a wide-band-gap material and has a high electron affinity. When it is embedded into organic electronic devices, bathocuproine acts as an exciton-blocking barrier which prohibits exciton diffusion process towards the Al electrode otherwise being quenched. One of the most commonly used buffer layer between acceptor and cathode layers is bathocuproine. The introduction of the buffer layer can greatly improve the PCE of polymer organic solar cells. BCP is one of the most popular hole-blocking layer materials that is used in organic electronics, including perovskite solar cells.
General Information

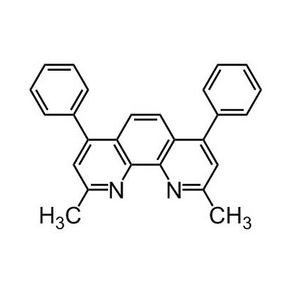

| Full name | 2,9-Dimethyl-4,7-diphenyl-1,10-phenanthroline |
|---|
| Synonyms | |
|---|
| CAS number | 4733-39-5 |
|---|
| Molecular formula | C26H20N2 |
|---|
| Molecular weight | 360.45 g/mol |
|---|
| HOMO / LUMO | HOMO ~ 6.4 eV LUMO ~2.9 eV |
|---|
| Classification / Family | Electron-transport layer (ETL), Electron-injection layer (EIL), Hole-blocking layer, OFET, OLED, Organic Photovoltaics, Perovskite solar cells, Sublimed materials. |
|---|
Product Details
| Purity | >99.5% (sublimed)
>98.0% (unsublimed) |
|---|
| Melting point | 280-282°C (lit.) |
|---|
| Appearance | Light yellow powder |
|---|
Batch details
| Grade (Purity) | Order Code | Quantity |
|---|
| Sublimed (>99.5%) | B231 | 1 g
|
|---|
| Sublimed (>99.5%) | B231 | 5 g |
|---|
| Unsublimed (>98.0%) | B232 | 5 g |
|---|
